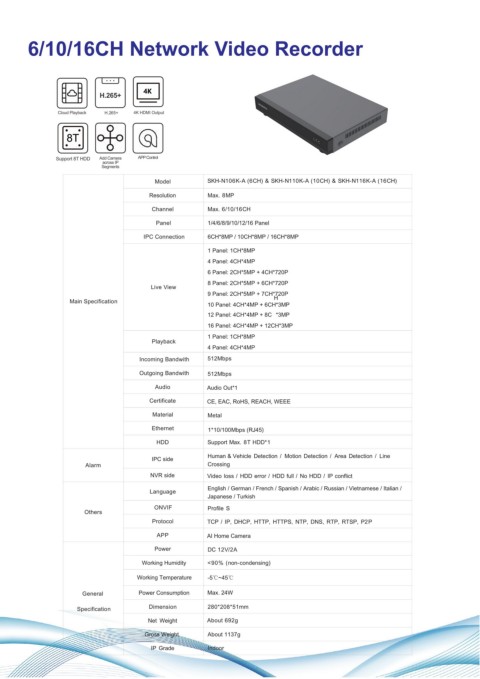

6/10/16CH Network Video Recorder

H.265+

Cloud Playback H.265+ 4K HDMI Output

Support 8T HDD Add Camera APP Control
across IP
Segments
SKH-N106K-A (6CH) & SKH-N110K-A (10CH) & SKH-N116K-A (16CH)
Model

Resolution Max. 8MP

Channel Max. 6/10/16CH

Panel 1/4/6/8/9/10/12/16 Panel

IPC Connection 6CH*8MP / 10CH*8MP / 16CH*8MP

1 Panel: 1CH*8MP

4 Panel: 4CH*4MP

6 Panel: 2CH*5MP + 4CH*720P
8 Panel: 2CH*5MP + 6CH*720P
Live View
9 Panel: 2CH*5MP + 7CH*720P
H
Main Specification
10 Panel: 4CH*4MP + 6CH*3MP
12 Panel: 4CH*4MP + 8C *3MP

16 Panel: 4CH*4MP + 12CH*3MP

1 Panel: 1CH*8MP

Playback
4 Panel: 4CH*4MP

Incoming Bandwith 512Mbps
Outgoing Bandwith 512Mbps
Audio Audio Out*1
Certificate CE, EAC, RoHS, REACH, WEEE

Material Metal
Ethernet 1*10/100Mbps (RJ45)

HDD Support Max. 8T HDD*1
IPC side Human & Vehicle Detection / Motion Detection / Area Detection / Line

Alarm Crossing

NVR side Video loss / HDD error / HDD full / No HDD / IP conflict
English / German / French / Spanish / Arabic / Russian / Vietnamese / Italian /

Language Japanese / Turkish
Others ONVIF Profile S

Protocol TCP / IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP, RTSP, P2P
APP AI Home Camera

Power DC 12V/2A

Working Humidity <90% (non-condensing)
Working Temperature -5¥~45¥

Genera l Power Consumption Max. 24W

Specificatio n Dimension 280*208*51mm
Net Weight About 692g

Gross Weight About 1137g
IP Grade Indoor
