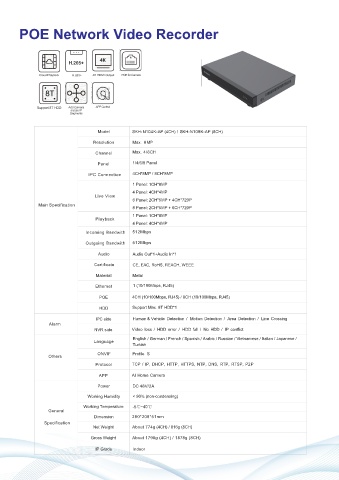

Page 38 - Catalogue Skyworth

POE Network Video Recorder

H.265+

Cloud Playback H.265+ 4K HDMI Output POE for Camera

Support 8T HDD Add Camera APP Control
across IP
Segments

(4CH) / SKH-N108K-AP (8CH)

Model SKH-N104K-AP

Resolution Max. 8MP

Channel Max. 4/8CH

Panel 1/4/6/8 Panel

4CH*8MP / 8CH*8MP
IPC Connection

1 Panel: 1CH*8MP
4 Panel: 4CH*4MP

Live View
6 Panel: 2CH*5MP + 4CH*720P
Main Specification
8 Panel: 2CH*5MP + 6CH*720P
1 Panel: 1CH*8MP
Playback
4 Panel: 4CH*4MP
Incoming Bandwith 512Mbps
Outgoing Bandwith 512Mbps
Audio Audio Out*1+Audio In*1
Certificate CE, EAC, RoHS, REACH, WEEE

Material Metal
Ethernet 1 (10/100Mbps, RJ45)

POE 4CH (10/100Mbps, RJ45) / 8CH (10/100Mbps, RJ45)
HDD Support Max. 8T HDD*1
IPC side Human & Vehicle Detection / Motion Detection / Area Detection / Line Crossing

Alarm
NVR side Video loss / HDD error / HDD full / No HDD / IP conflict
English / German / French / Spanish / Arabic / Russian / Vietnamese / Italian / Japanese /
Language
Turkish
ONVIF Profile S
Others
Protocol TCP / IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP, RTSP, P2P
APP AI Home Camera
Power DC 48V/2A

Working Humidity < 90% (non-condensing)
Working Temperature -5 ~40
General
Dimension 280*208*51mm
Specification
Net Weight About 774g (4CH) / 816g (8CH)
Gross Weight About 1798g (4CH) / 1878g (8CH)

IP Grade Indoor
